The mortar spraying machine may not be new to us in recent years. It is widely used in the spraying of walls on various construction sites. The rapid mortar spraying machine is mainly composed of the driving device, rotor assembly, air path system, spray system, electrical control system, etc. Partly composed. Today we will briefly introduce these parts.
1. The driving device is installed and connected to one end of the machine by the motor and the cycloid reducer. The motor is directly installed on the reducer and parallel to the axis of the rotor and stator.
2. The rotor assembly is made of special alloy materials and is subjected to high temperature quenching and modulation treatment. The stator is generally made of special rubber materials to improve wear resistance, strength and reduce maintenance workload.

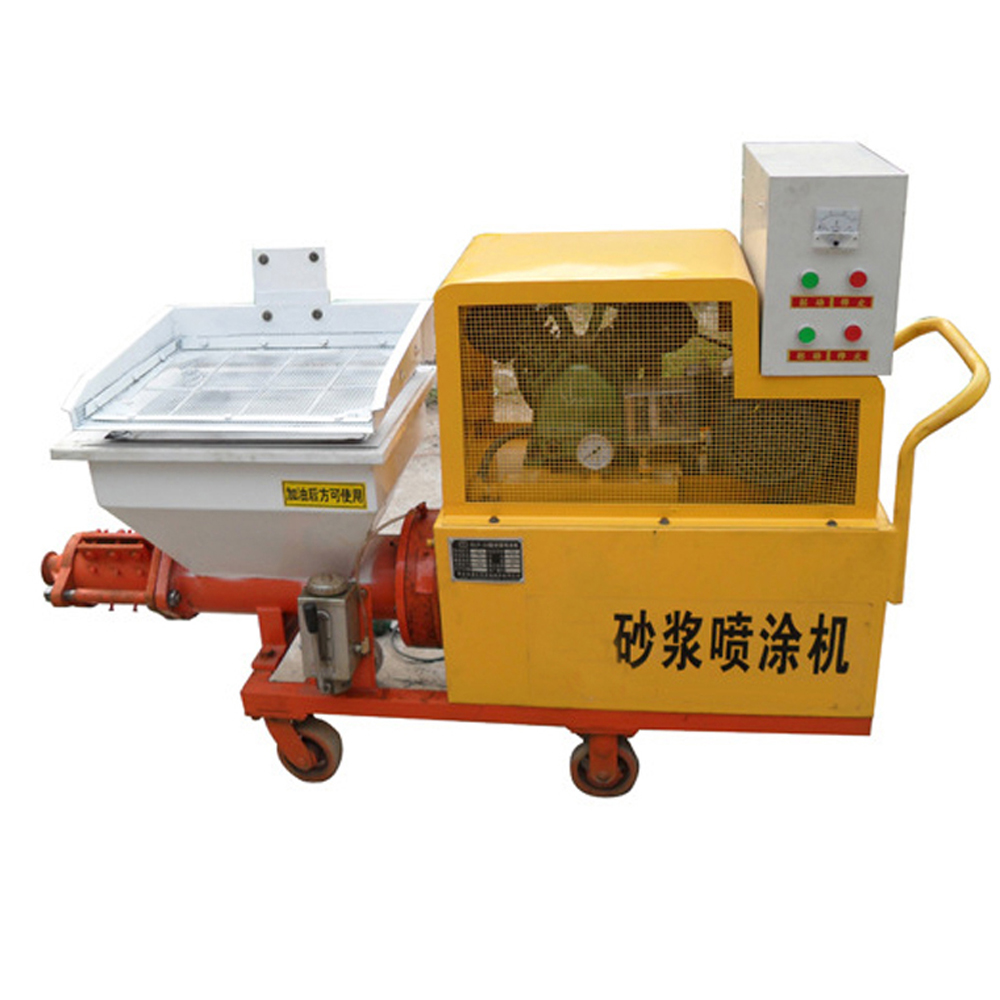

The Structure Of Mortar Spraying Machine
3. The air path system uses the electric motor to drive the air compressor to produce high-pressure air pressure, and then passes through the safety valve, pressure limiting valve, and is provided to the spray gun, and the mortar is sprayed out.
4. The spray system is the most important system of the mortar spraying machine. It is composed of a conveying hose and a spray gun. The conveying hose is generally made of wear-resistant slurry tube, and the spray gun is made by injection of polymer materials. The spray gun is fixed on the spray gun by a mortar pipe, a gas pipe and an air valve.
5. The electrical control system consists of a leakage air automatic switch, an AC contactor, a thermal relay, and a start and stop button, which can effectively protect against leakage, excessive current, and short circuit.
