GLP-311 Cement Mortar Spraying Machine Wall Cement Plastering

Introduction of

GLP-311 Cement Mortar Spraying Machine Wall Cement Plastering

GLP-311 Mortar Plastering Machine is widely used for spraying mortar on the wall ,tunnel ,channel ,etc.

Available spraying material means sand ,cement , water,etc , other things that the diameter is no more than 5mm.

1.reasonable design, integration of pump and compressor, easy to move.

2.feeding smoothly , no pulse phenomenon;

3.wide applicability, can spray powder, mortar, can also spray mortar;

4.coating uniformity, strong adhesion;

5.complete functions, can spray can coating;

6.can change the connection direction of the spray gun and nozzle, easy to operate.

Main Parameter of

GLP-311 Cement Mortar Spraying Machine Wall Cement Plastering

Model	GLP-311
Capacity	3m³/h
Power	4KW
Air compressor	2KW
Voltage	380v/220v
Horizontal Delivery Distance	20m
Vertical Delivery Height	10m
Hopper Volume	60L
Net Weight	130KG
Gorss Weight	200KG
Size	1500*450*850mm
Maximum Aggregate Size	Φ5mm
Inner Size of Hose	Φ32mm

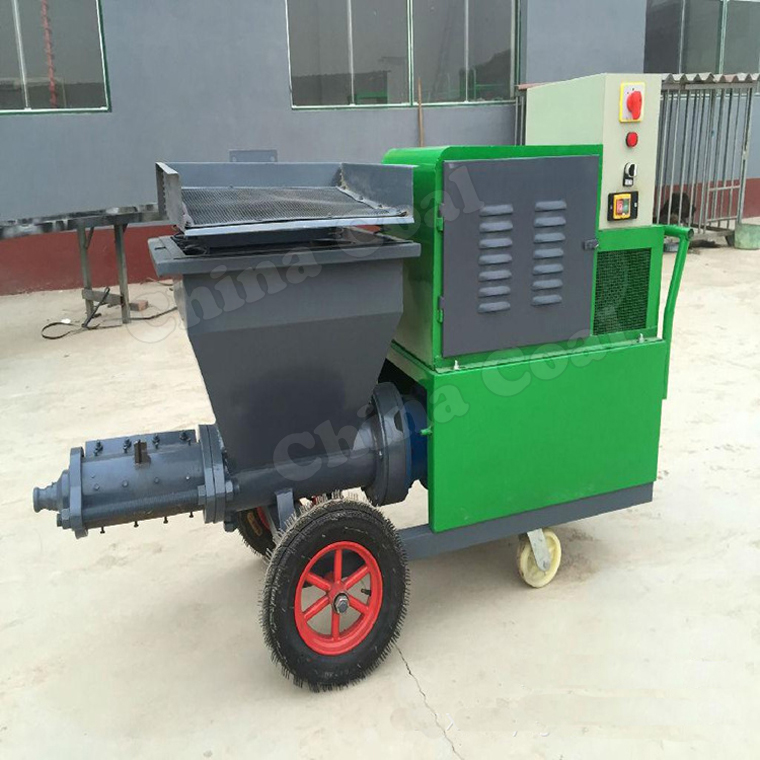

PHOTOS OF

GLP-311 Cement Mortar Spraying Machine Wall Cement Plastering

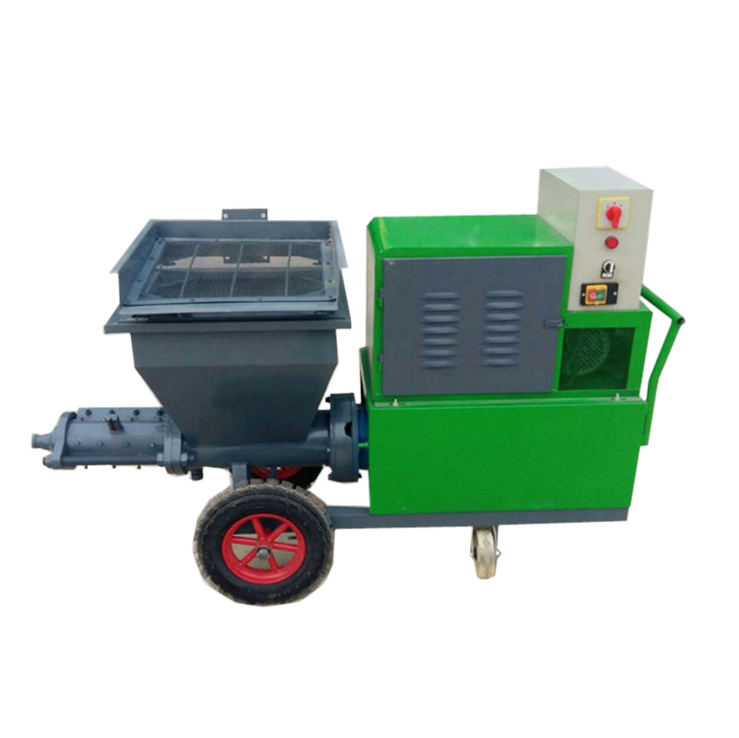

PHOTOS OF

GLP-311 Cement Mortar Spraying Machine Wall Cement Plastering

•
