GLP-3B Wall Mortar Sprayer

GLP-3B Wall Mortar Sprayer

GLP-3B Mortar Sprayer is suitable for interior and exterior ordinary mortar painting and plastering, particles of polystyrene mortar spraying , perlite insulation mortar spraying, glass beads of insul

Time : 2018-09-14
Label: Mortar Sprayer Wall Mortar Sprayer Wall Spraying Machine
Introduction of

GLP-3B Wall Mortar Sprayer

GLP-3B Mortar Sprayer is suitable for interior and exterior ordinary mortar painting and plastering, particles of polystyrene mortar spraying , perlite insulation mortar spraying, glass beads of insulation mortar spraying, waterproof material coating, refractory spraying.

Feature of GLP-3B Mortar Sprayer

GLP-3B Mortar Sprayer adopts stepless gear reducer, compared to conventional spraying machine, it  has the following characteristics:

1. According to the type of coating material (viscosity of coating materials are different), the motor speed can be adjusted to change the size of the spray volume.

2. Compared to using the inverter to control the speed, it has non-perishable, easy adjustment and other advantages.

3. Increasing the service life of wearing parts. When the consumable parts of ordinary mortar spraying machine worn and tore, flow and pressure will be reduced , the only way is to replace the wearing parts, but this machine increase the service life of wearing parts by increasing the speed. Experiments can increase the service life of wearing parts by 30%.

Main Parameter of

GLP-3B Wall Mortar Sprayer

Working capacity

3--6m3/hr

Working pressure

3MPa

Horizontal conveying distance

50m

Vertical conveying distance

30m

Main motor power

7.5kw,380v

Screw speed

200---600RPM

Max aggregate size

4mm

Duct diameter

25/32mm

Hopper Capacity

50L

Feeding height

800mm

Outer size(L*W*H)

1835(1425)*600*1150mm

Machine weight

380kg

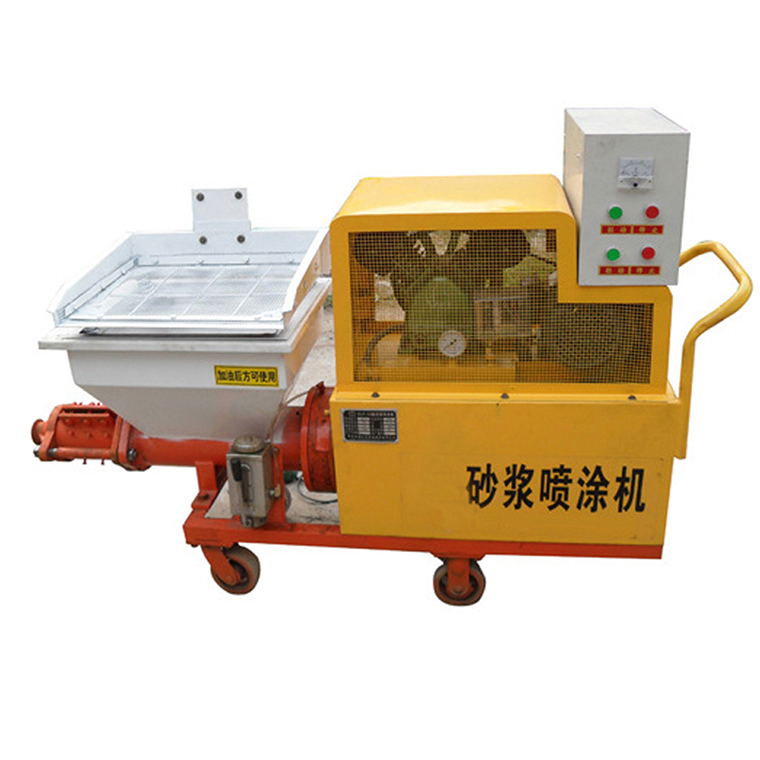

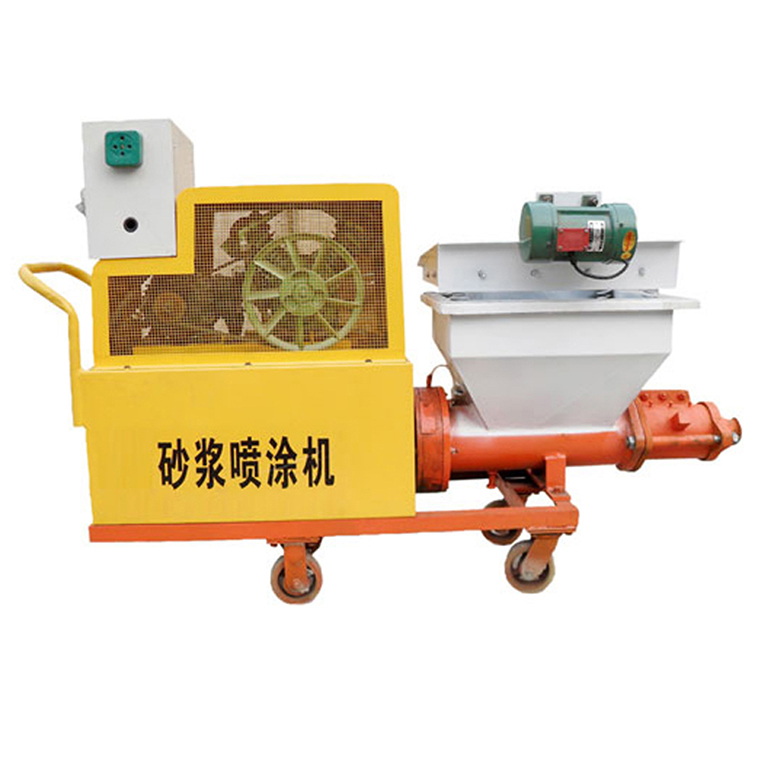

Photos Of

GLP-3B Wall Mortar Sprayer

  • GLP-3B Wall Mortar Sprayer
  • GLP-3B Wall Mortar Sprayer
