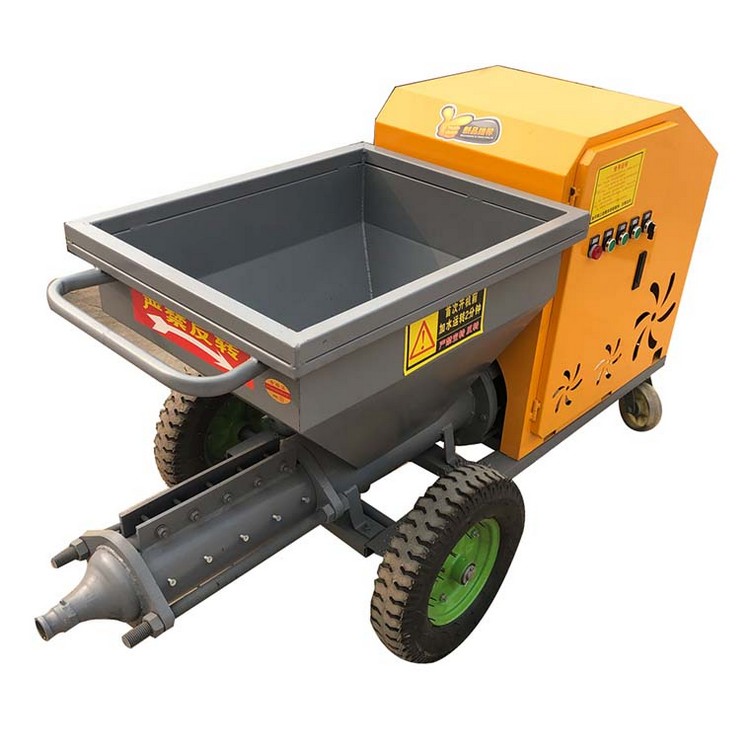

Mortar spraying machine is mainly composed of driving device, rotor assembly, spraying system and other parts. The working principle of the rapid mortar spraying machine: the mixed material is discharged by the distribution mixer (or manual mixing and feeding), and sent to the high-pressure chamber by the screw feeding roller, and then the high-pressure rotor and the high-pressure stator rotate to form a high pressure, and the mortar passes through The high-pressure conveying pipe is sent to the spray gun, and the spray gun introduces another high-pressure wind to blow the material away and accelerate the ejection.
1. Add butter before starting each shift, and add butter during use, especially after washing the machine with water at the end, beating more butter again.
2. After turning on the power, first click the air compressor on button to check whether the belt rotation of the air compressor is consistent with the arrow. ).
3. When using for the first time, connect the delivery hose and spray head, fill the hopper with clean water, start the motor and raise the spray gun to fully wet the inner wall of the pipe to lubricate the hopper, pump body and delivery pipe, and then remove the water in the pipe. All are discharged, and the water under the hopper is opened to drain.
4. Add mortar or paint into the hopper to start spraying (pay attention to lubricate the inner wall of the sandblasting pipe).
5. It is strictly forbidden to run idling when there is no material or water in the hopper.
6. After the work is completed, the remaining material in the hopper should be drained, and enough clean water should be added to the hopper, clean the hopper, and start the pump, clean the hose and the nozzle until the pump is all clean water, so as to avoid the remaining material in the hose Medium solidification, clogging of hoses and nozzles (for the convenience of next use, please be sure to clean the sand in the sandblasting tube after work).
7. To stop the mortar spraying machine for a long time, clean the machine and remove the booster screw. After applying oil, keep it in a safe place and reinstall it when using it.
