N2 Semi-Automatic Plaster Spraying Machine

N2 Semi-Automatic Plaster Spraying Machine

N2 Semi-Automatic Plaster Spraying Machine only required three persons for operation. One person delivers material, one person operates the spraying gun, a third person does the assistant work (for i

Time : 2018-09-14
Label: Motar Spraying Machine Plaster Spraying Machine Concrete Spraying Machine
Introduction of

N2 Semi-Automatic Plaster Spraying Machine

1. N2 Semi-Automatic Plaster Spraying Machine only required three persons for operation. One person delivers material, one person operates the spraying gun, a third person does the assistant work (for instance: assistant to remove the hose). The whole processes such as water adding, mixing and delivery of the material etc. are implemented by the machine automatically. Compared with the manual operation, it can save manpower, material resources, money and precious time, as well makes the construction quality better and more reliable than the traditional manual operation.

2.. Fields of application

For pump-able dry mortars, such as:

Machine-applicable gypsum plasters, Insulating plasters, Lime-gypsum plasters, Cement render, Lime plasters, Cement-lime render, Masonry mortars, Slot mortars, Reinforcing and bonding mortars, Self-leveling floor screeds, fango materials, and many more.

3.. Projects of application

Interface agent, rendering of normal mortar, plastering of wire frame structure plates, the grouting of terrace, anti fire and anti corrosive coatings, some high-density coatings, etc.

Main Parameter of

N2 Semi-Automatic Plaster Spraying Machine

Model

N2 semi-automatic

Voltage

380V

Power

4KW

Delivery capacity

3-60L/min

Delivery pressure

30bar

Delivery distance

0-100m

Delivery height

50m

Maximum aggregate diameter

3mm

Hopper capacity

50L

Maximum length of delivery hose

100m

Weight

165kg

CTN’s Dimension

1310×640×1180mm



Accessories

15m delivery hose, 1 high pressure gun, 1 low pressure gun, 16m air hose, 20m manual operation wire, key for control box, instruction book, sponge balls, screw and nuts, etc.

Photos Of

N2 Semi-Automatic Plaster Spraying Machine

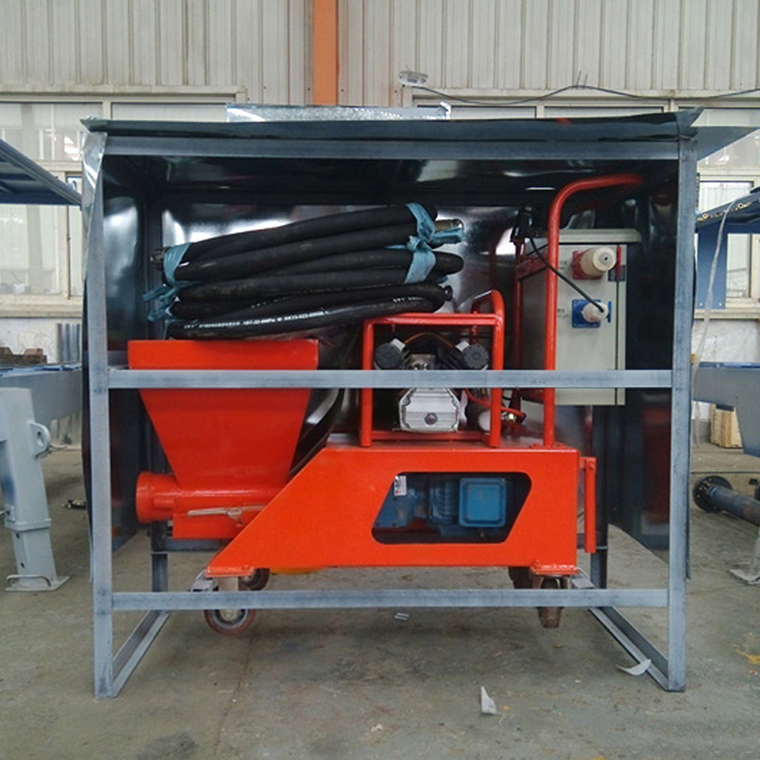

  • N2 Semi-Automatic Plaster Spraying Machine

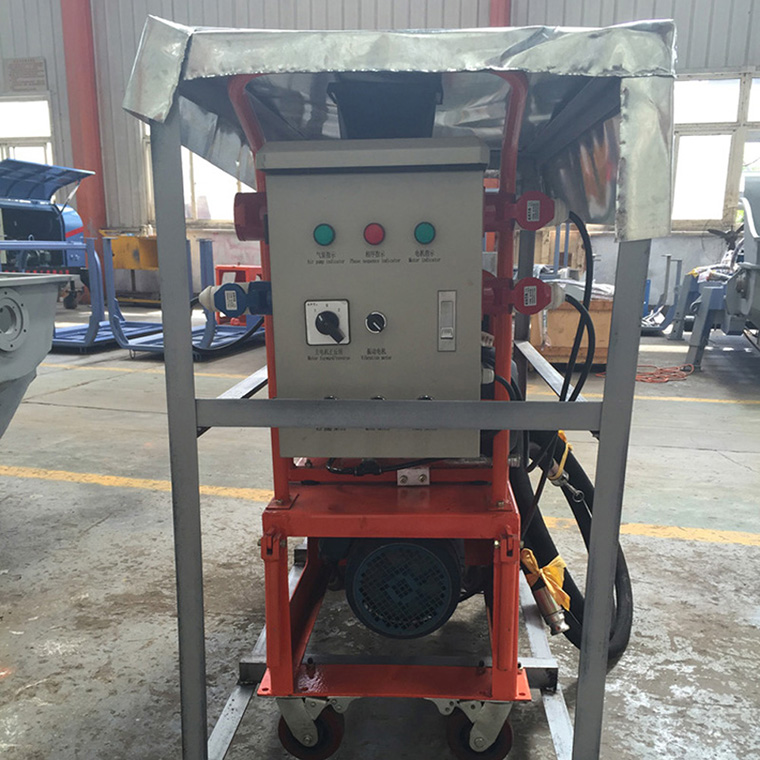

  • N2 Semi-Automatic Plaster Spraying Machine
