Automatic mortar spraying machine is a professional spraying machine specially used for spraying mortar. It can be used for spraying mortar with mortar particles below 4-5 mm. Next, I will give you a brief introduction to the working principle and product structure of the mortar spraying machine.
First, the automatic spraying machine working principle
The automatic mortar spraying machine sends the stirred materials from the mixing and stirring machine port (or manual mixing and feeding) to the automatic spraying machine hopper through the vibration screen, and then the spiral feed to the high pressure chamber, and then the high pressure rotor, high pressure. The stator rotates to form a high pressure, and the mortar is sent to the spray gun through a high-pressure conveying pipe. Another high-pressure wind is introduced by the spray gun, which blows away the material and accelerates the spray out.
Automatic spraying machine structure
The automatic mortar spraying machine is mainly composed of driving device, rotor assembly, air system, spray system, electrical control system and other parts.

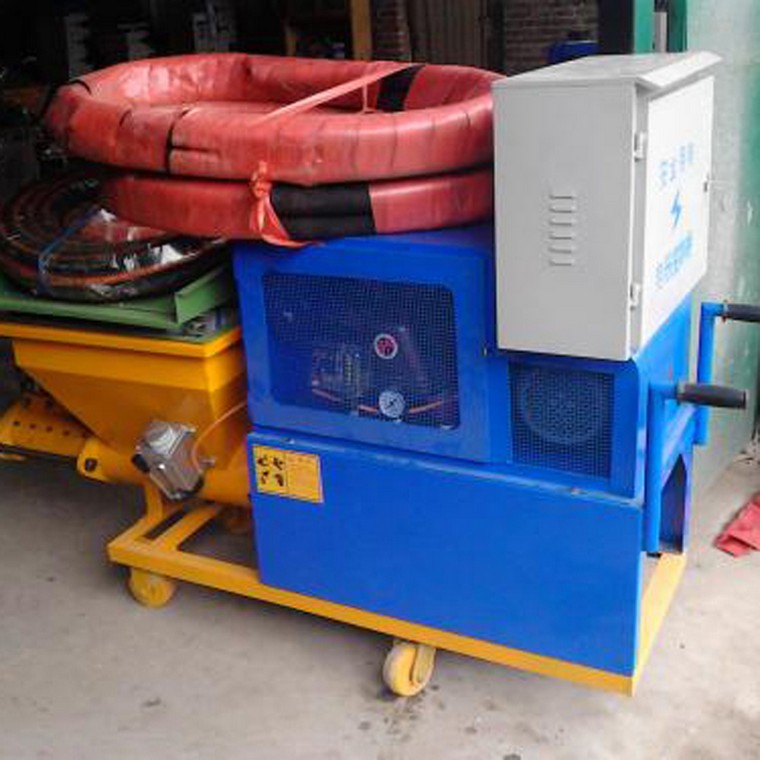

Automatic mortar spraying machine
1. The driving device is connected to the end of the machine by a motor connected to the cycloid reducer. The motor is directly installed on the reducer, parallel to the axis of the rotor and the stator. Motor model: Y132S-4-5.5KW, voltage: 380V, speed: 1440 rpm, speed reducer model: BX1-4, speed ratio: 1 ﹕ 9;
2. The rotor of the machine is made of special alloy material and subjected to high-temperature quenching and modulation treatment. The stator is made of special rubber material to improve wear resistance, strength and reduce maintenance workload;
3. The air system is driven by a 2.2KW electric motor to produce high-pressure air pressure, which is supplied to the spray gun through a safety valve, a pressure limiting valve, and the mortar is sprayed out;
4. The spraying system is composed of a feeding hose and a spray gun. The feeding hose is a wear-resistant slurry tube. The spray gun is made of polymer material. The mortar tube, gas pipe and gas valve are fixed on the spray gun.
5.Electrical control system: The control box is composed of automatic leakage air switch, AC contactor, thermal relay and start and stop buttons, which can realize protection functions such as leakage, overcurrent 6s, short circuit and so on.
The above is the relevant content about the product structure and working principle of the automatic mortar spraying machine shared with you. I hope that through a brief explanation of the above content, you can have a better understanding and understanding of the automatic spraying machine.
